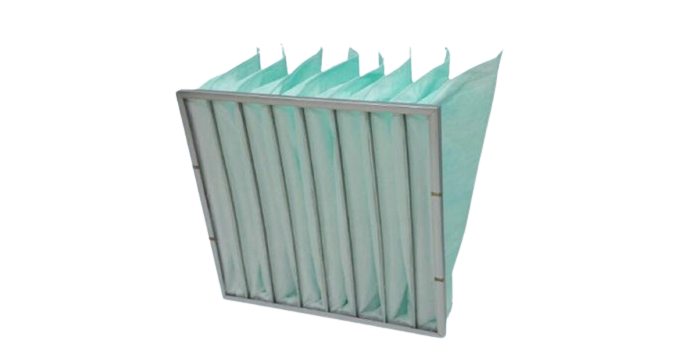

1st : Pre Filter |
Pre Filter media designed to various ASHRAE standards consists of 8 pockets. The media consists of one membrane spunbonded on each side for strength and stability, and one melt-blown particle membrane and one fine melt-blown membrane for filtering smaller particles.
The melt-blown design is densely sloped to improve maximum life and maximum filtration.
This filter is self-supporting and can be installed vertically or horizontally.
◐ Dimension
Model No. | Width | Height | Depth | Pocket no. | Remarks |
JS-GTP-88 | 592 mm | 592 mm | 305 mm | 8 | (22mm) |
◐ Performance
Air Flow (CMH) | Pressure Drop (Pa) | Efficiency (Colormetric) | Filter Class (EN779 |
3400 | 32.2Pa | 35 % | G4 |
◐ Component materials
Description | Materials | Remarks |
Frame | Galvanized Steel | |
Media | Synthetic Fiber | |
Clip | Galvanized Steel |
