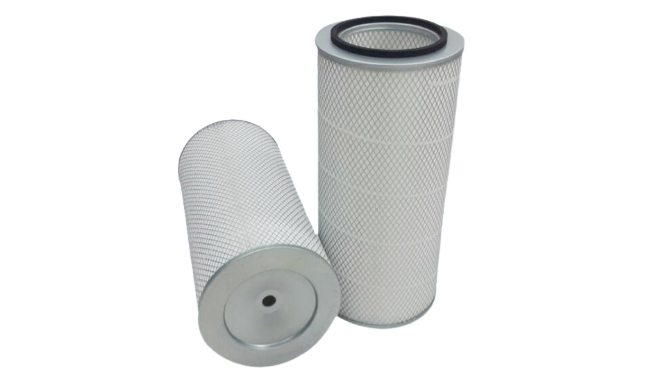

Our Cylindrical Filter Cartridge is specially designed and manufactured to meet the requirements of Gas Turbine Inlet Air Filtration System. High efficiency performance with excellent durability and water repellency By applying filter media, pressure loss is minimized, filtration efficiency is maximized, and long-life performance is shown in high temperature and high humidity conditions.
Advantages
-The nanofibers were spun to maximize the collection and collection efficiency.
-The filter filter has a high tension, which extends the filter life.
-Lowest initial differential pressure. (Low pressure)
-Filter media with water repellency. (Filter)
-Economics due to high terminal pressures.
-Extended filter life by filter cleaning (dust removal) with Air Pulse type
Model No. | OD | ID | LG | |
JS-GTC-245 | 406 mm | 292 mm | 559 mm | |
( 16 inch ) | ( 11.5 inch ) | ( 22 inch ) | ||
JS-GTC-248 | 406 mm | 292 mm | 876 mm | |
( 16 inch ) | ( 11.5 inch ) | ( 34.5 inch ) |
Model No. | Air Flow(CFM) | Initial Pressure Drop (inch W.G) | Average Efficiency (%) | Dust Holding Capacity | Average arrestance | Filter Class EN779 & Ashrae 52.2 |
JS-GTC-245 | 1,066 | 0.44 | 96 | 4,480 g | 100 | MERV/F9 |
JS-GTC-248 | 1,066 | 0.44 | 96 | 4,480 g | 100 | MERV15/F9 |
Description | Materials | Remarks |
CAP (TOP, BOTTOM) | Galvanized Steel | |
CORE (INNER, OUTER) | Galvanized Steel | |
Media | Cellulose/Synthetic Blended (80:20) | |
Gasket | Seamless Poly-Urethane (closed cell) | |
Sealer | Poly-Urethane |
